NANOCRYSTALLINE CORE

/Epoxy Resin Magnetic Toroidal Cores 165

Epoxy Resin Magnetic Toroidal Cores 165

Epoxy Resin Tape Wound Magnetic Toroidal Cores for common mode choke and other electronic components. We provide one-stand solution services, please feel free to contact us.
  • Brand:

    SAT
  • Item NO.:

    SATOF-16x10x6-165
  • Order(MOQ):

    3000
  • Payment:

    EXW
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    Shenzhen/ Huizhou/ Hongkong
  • Lead Time:

    7-15 Days
  • Product Detail

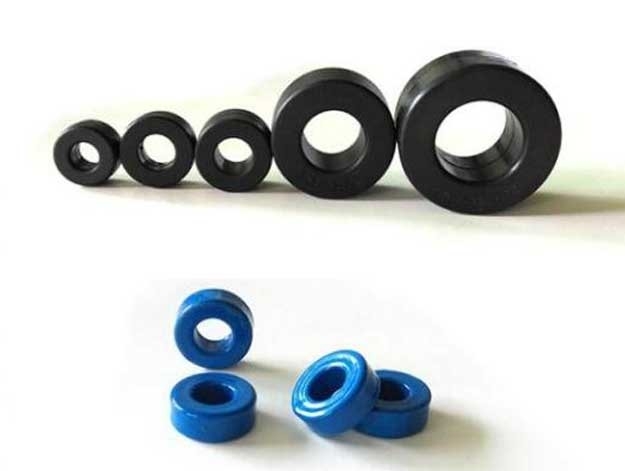

SAT Nanocrystalline Epoxy Resin Magnetic Toroidal Core


SAT tape-wound toroidal cores made of nanocrystalline or amorphous magnetic material with epoxy resin coating, shows higher permeability, lower core loss and higher energy switching efficiency than ferrite and permalloy ones. It’s the best core material for common mode choke, inductor, coil, toroidal transformer and electronic components. SAT magnetic toroidal cores make electronic components smaller, lighter and more accurate.


The Specification of Epoxy Resin Magnetic Toroidal Cores


Core design

Toroidal core

Core for common mode choke

161006

Nominal Dimensions

16x10x6mm

Core Material

SAT1K101

Type of Finish

Plastic box / silicon rubber

Rated Dimensions

Afe=0.144m²
lFe=4.08cm
mFe=4.4g

Final Inspection

Magnetical Test Measurement at room temperature (AQL 0,65)

Inductance test without DC-magnetisation

7.1 Setting values:

f=100KHz / 0.3 8.66mA

Specified value:

1.5µH≤ AL ≤3.0µH (Magnetic conductivity 3380≤ µ3`≤6770)


Epoxy Resin Magnetic Toroidal Cores 165

Epoxy Resin Magnetic Toroidal Cores


Epoxy Resin Magnetic Toroidal Cores Features:

1. The operating temperature of toroidal cores with epoxy resin coating up to 120 °C

2. Cores with plastic casing for operating temperatures up to 130 °C

3. The toroidal shape provides higher permeability and lower core loss than ferrite and permalloy

4. Different permeability levels toroidal cores for electronic components are available


Please leave a message below for more details of magnetic toroidal cores product information.
