Epoxy Resin Magnetic Toroidal Cores 759

Epoxy Resin Tape Wound Magnetic Toroidal Cores for common mode choke and other electronic components. We provide one-stand solution services, please feel free to contact us.
  • Brand:

    SAT
  • Item NO.:

    SATOGN-10x7x4.5-759
  • Order(MOQ):

    3000
  • Payment:

    EXW
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    Shenzhen/ Huizhou/ Hongkong
  • Lead Time:

    7-15 Days
  • Product Detail

SAT Nanocrystalline Epoxy Resin Magnetic Toroidal Core


SAT customized nanocrystalline toroidal cores have wide range of dimensions and permeability levels (µ~700 to µ >>100,000), performs higher saturation magnetization and lower core loss than ferrite and permalloy. It’s one of the best material for common mode choke, converter, coil, and electronic components. SAT magnetic toroidal cores make electronic components smaller, lighter and more accurate.


The Specification of Epoxy Resin Magnetic Toroidal Cores


Core design

Toroidal core

Core for common mode choke

10074.5

Nominal Dimensions

10x7x4.5mm

Core Material

SAT1K101

Type of Finish

Plastic box / silicon rubber

Rated Dimensions

Afe=0.054cm²

lFe=2.67cm

mFe=1.1g

Final Inspection

Magnetical Test Measurement at room temperature (AQL 0,65)

Inductance test without DC-magnetisation

7.1.Measurement of core losses according to MATS-2010A

Setting values:

B=400mT

F=50KHz

Specified value:

pFe≤120 W/kg

7.2.Measurement of flux density swing from residual flux density into saturation with unipolar rectangular voltage pulses, constant field strength amplitude.

Setting values:

td=20µs,

fP=1kHz

H=2A/cm

Specified value:

Br/Bs≥0.8

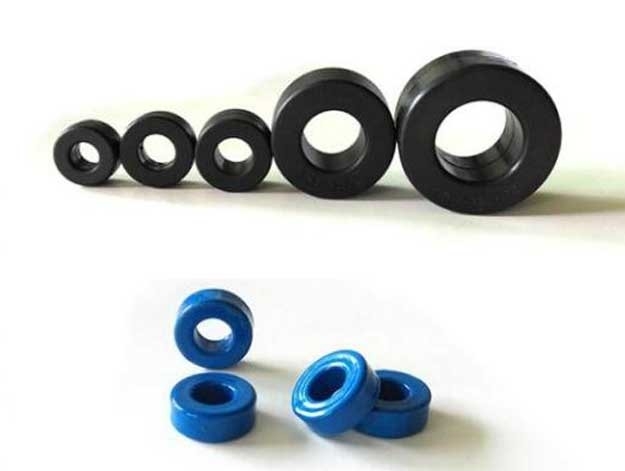

Epoxy Resin Magnetic Toroidal Cores

Epoxy Resin Magnetic Toroidal Cores


Epoxy Resin Magnetic Toroidal Cores Features:

1. The operating temperature of toroidal cores with epoxy resin coating up to 120 °C

2. Cores with plastic casing for operating temperatures up to 130 °C

3. The toroidal shape provides higher permeability and lower core loss than ferrite and permalloy

4. Different permeability levels toroidal cores for electronic components are available


Please leave a message below for more details of magnetic toroidal cores product information.
